1991-2002 Chevy & GMC C3500HD Heavy Duty Rear Leaf Spring 22-1009HD

$292.50 Sale Save

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

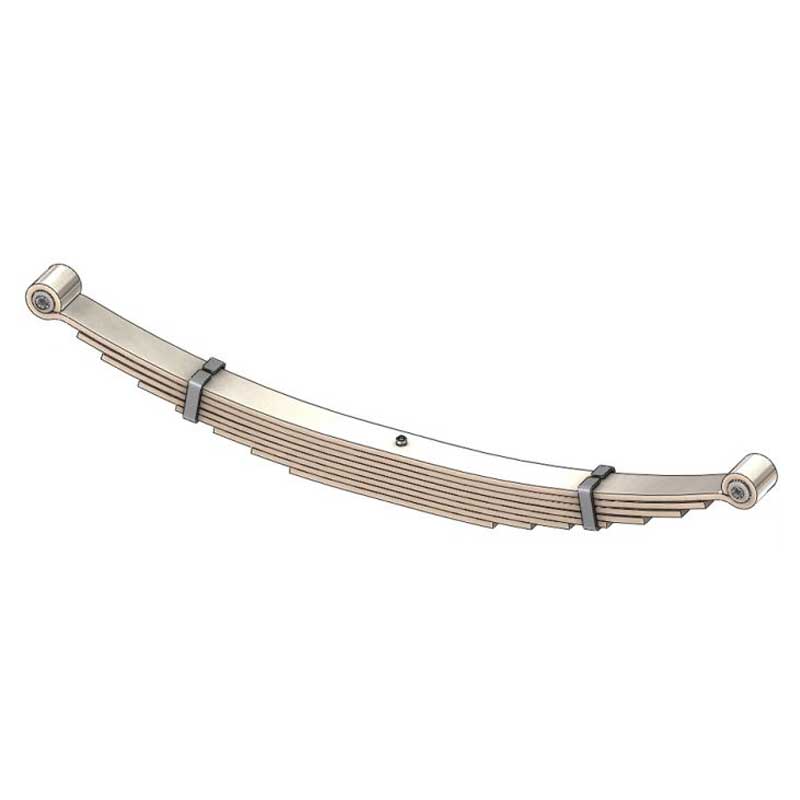

Chevy and GMC rear heavy duty leaf spring part number 22-1009hd.

  • *Diagram Spring May Differ From Actual Spring*
  • Number of Leaves - 8
  • Leaf Spring Width - 3"
  • A - Leaf Spring Length: 28"
  • B - Leaf Spring Length: 28"
  • - Leaf Spring Arch: 4-5/8"
  • C - Leaf Spring Pack Thickness: 4"
  • Leaf Spring Capacity: 5,000 lbs.
  • Leaf Spring OEM Number: Replaces 15636134
  • Leaf Spring Bushings: Front RB-218 / Rear RB-219
  • Includes Front and Rear Eye Bushings
  • Leaf Spring Material: 8/499
  • Location - Rear


Leaf spring 22-1009HD is the rear heavy duty leaf spring for 1991-2002 Chevy and GMC C3500HD trucks. The spring is 3" wide, is a 8 leaf spring and has a capacity of 5,000 lbs. Replaces OEM part number 15636134.
