1973-1991 Chevy & GMC C, K, V, And R Series Truck, Suburban Rear Leaf Spring 22-547

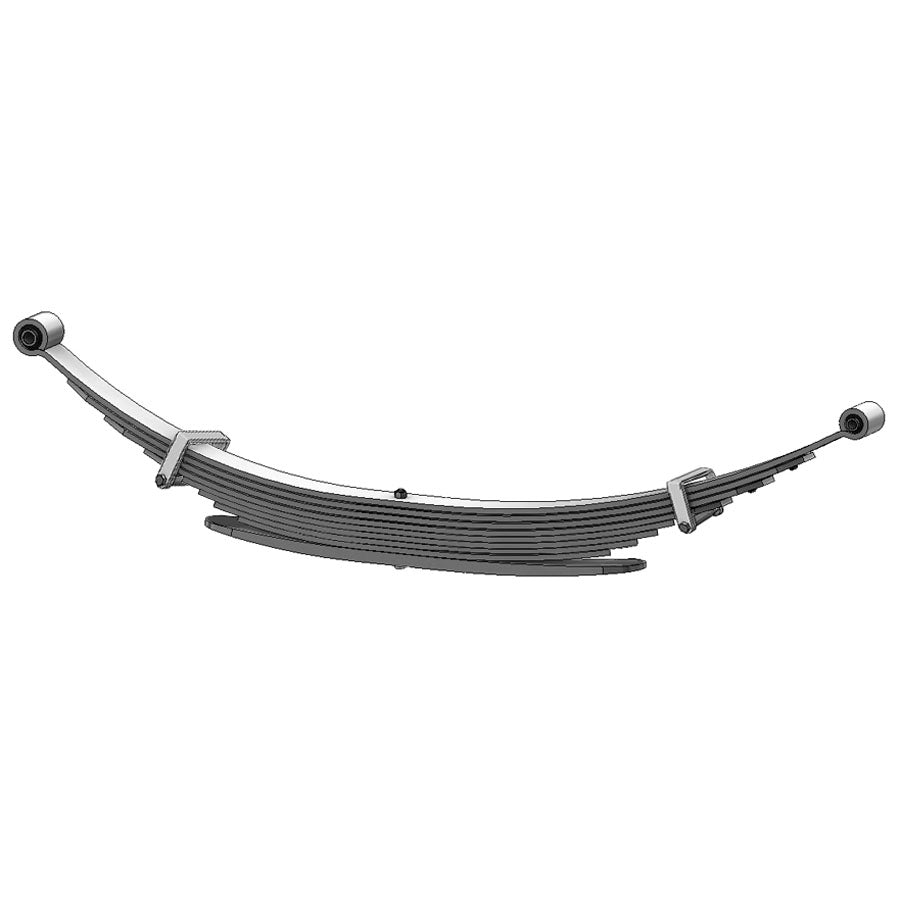

- *Diagram Spring May Differ From Actual Spring*
- Number of Leaves - 9 (8/1)
- Leaf Spring Width - 2-1/2"
- A - Leaf Spring Length: 26"
- B - Leaf Spring Length: 30"
- C - Leaf Spring Arch: 6-1/4"
- D - Leaf Spring Pack Thickness: 3-3/16"
- Leaf Spring Capacity: 2,600 lbs.
- Leaf Spring OEM Number: 357246
- Leaf Spring Eye Bushings: Front RB-136 / Rear RB-117
- Includes Front and Rear Eye Bushings
- Leaf Spring Material: 3/323, 5/291, Second Stage 1/770
- Location - Rear
Leaf spring 22-547 is the rear leaf spring on Chevy and GMC C10/1500, C20/2500, C30/3500, K10/1500, K20/2500, K30/3500, R10/1500, R20/2500, R30/3500, V20/2500, V30/3500 and Suburban. The rear spring is 2-1/2" wide and is a 9 (8/1) leaf spring. The capacity of this leaf spring is 2,600 lbs. and the OEM part number is 357246.
Models And Year Ranges:
Fits: 1980-1987 Rear Chevrolet And GMC K20/2500 And V20/2500 (4WD With Heavy Duty Springs)
Fits: 1977-1991 Rear Chevrolet And GMC K30/3500 And V30/3500 (4WD)
Fits: 1973-1987 Rear Chevrolet And GMC C10/1500 R10/1500 (2WD With Heavy Duty Springs)
Fits: 1973-1989 Rear Chevrolet And GMC C20/2500 And R20/2500 (2WD)
Fits: 1973-1991 Rear Chevrolet And GMC C30/3500 And R30/3500 (2WD)
Fits: 1973-1974 Rear Chevrolet And GMC C10/1500 Suburban (2WD With Heavy Duty Springs)
Fits: 1975-1988 Rear Chevrolet And GMC C10/1500 And R10/1500 Suburban (2WD)
Fits: 1973-1988 Rear Chevrolet And GMC C20/2500 And R20/2500 Suburban (2WD)
Fits: 1980-1988 Rear Chevrolet And GMC K20/2500 And V20/2500 Suburban (4WD)
